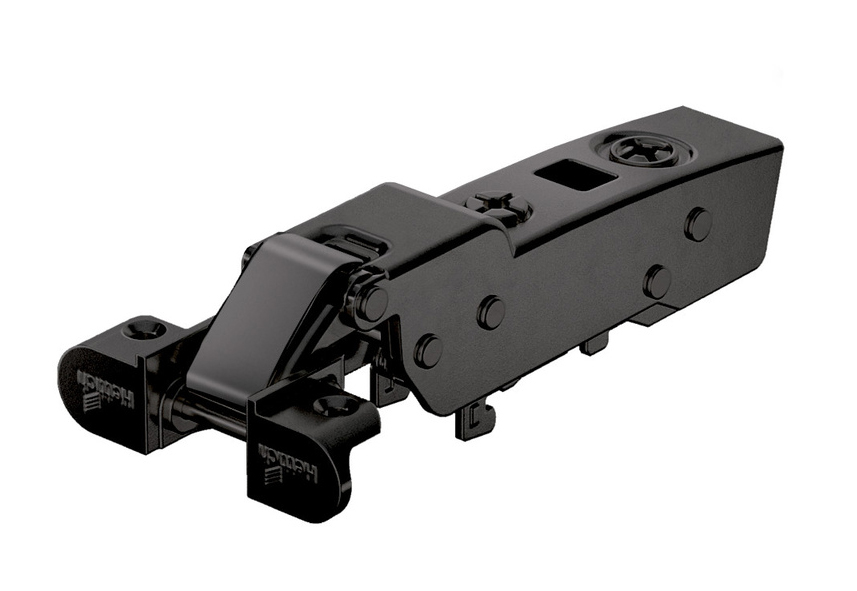

HETTICH 9091225 Sensys 8631i polonaložený 95° úzký alu rámeček SiSy obsidián
Product range code
518855
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

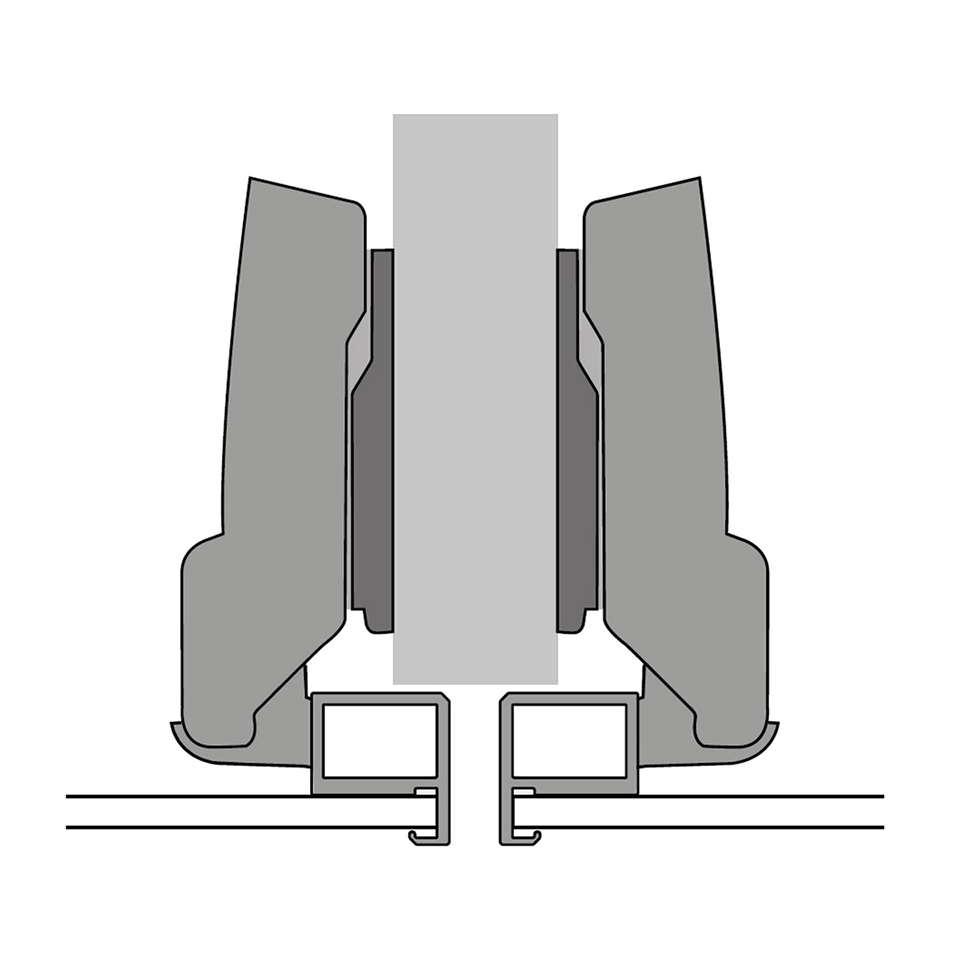

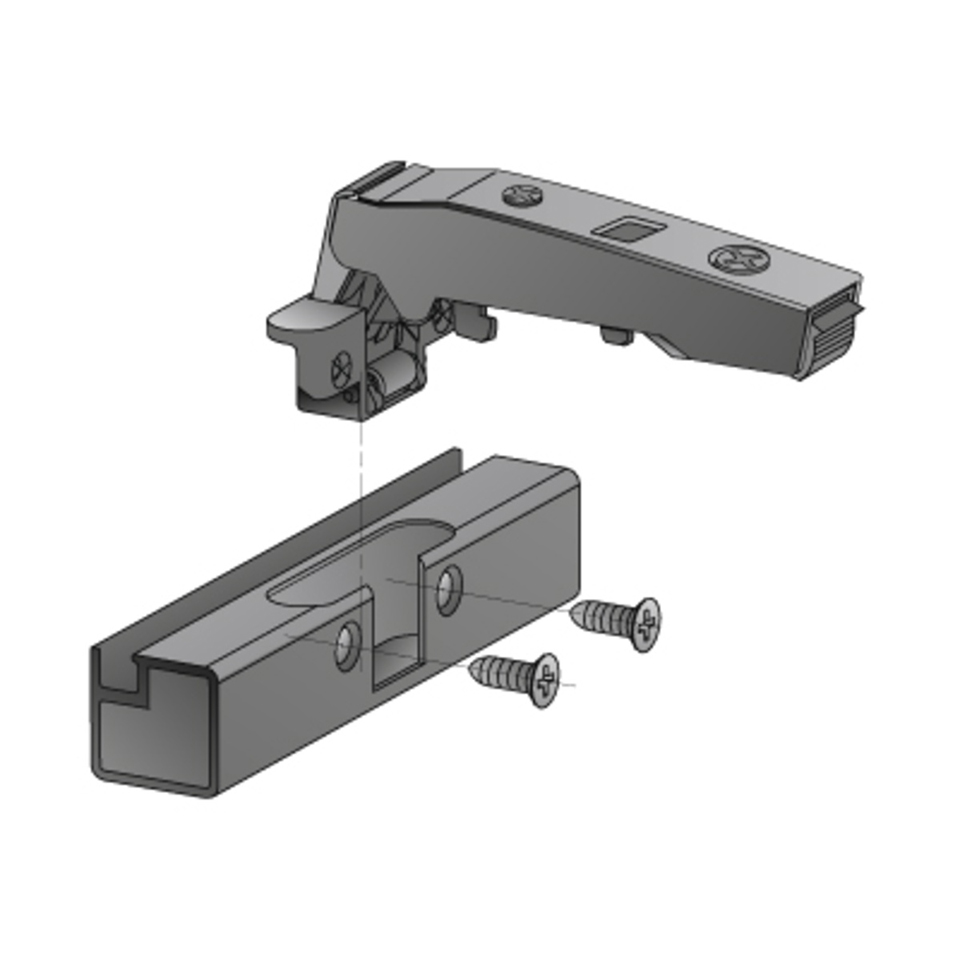

Half-overlay hinge Sensys 8631i with closing spring and integrated Silent System soft-close for doors with a narrow aluminum frame, color black obsidian. Opening angle 95°. Screw-on installation, including 2 mounting screws. Integrated overlay adjustment +2 mm/-2 mm, integrated depth adjustment +3 mm/-2 mm, height adjustment with mounting plate. Steel and zinc die-cast.
