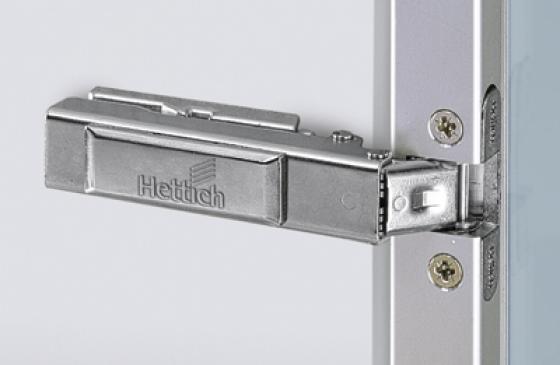

HETTICH 9155233 Intermat 9936 alu B13.5 TA22
Product range code
300801
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

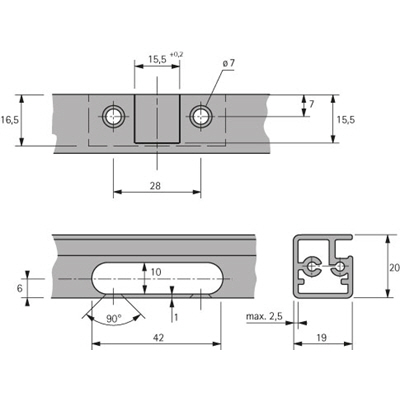

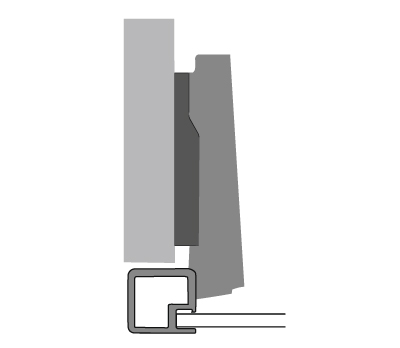

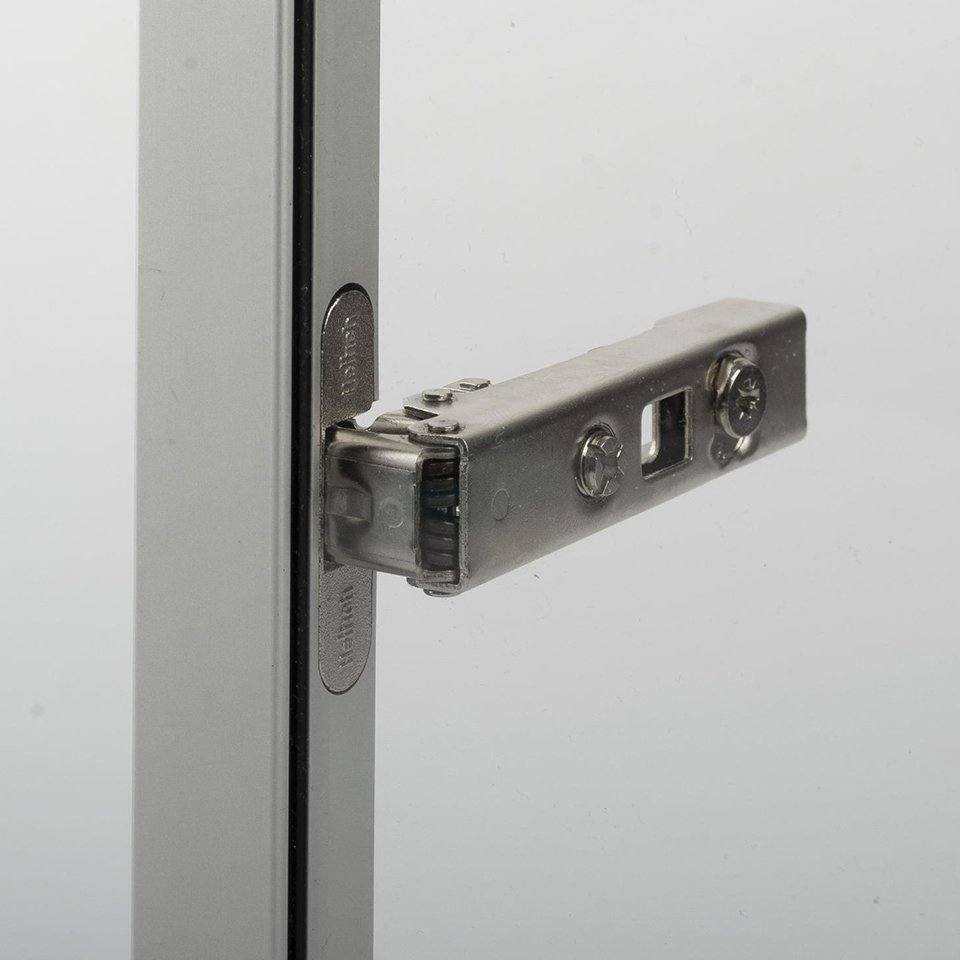

Hinge with clip technology, loaded. Quality in accordance with EN 15570, level 2. For aluminum frame profiles with a width of 19 mm. Integrated loading adjustment + 2 mm, - 2 mm. Integrated depth adjustment + 2.5 mm, - 1.5 mm. Height adjustment with mounting pad. TA22 / D bowl for use with optional Silent System clip-on silencer. Hanger arm material: nickel-plated steel. Hinge bowl material: nickel-plated zinc die-cast. Including 2 fixing screws.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Angle of opening | 95 |
| Mounting into material | Undefined |
| Mounting on washer | To jam |
