HETTICH 9239784 additional hinge Kamat
Product range code
387533
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

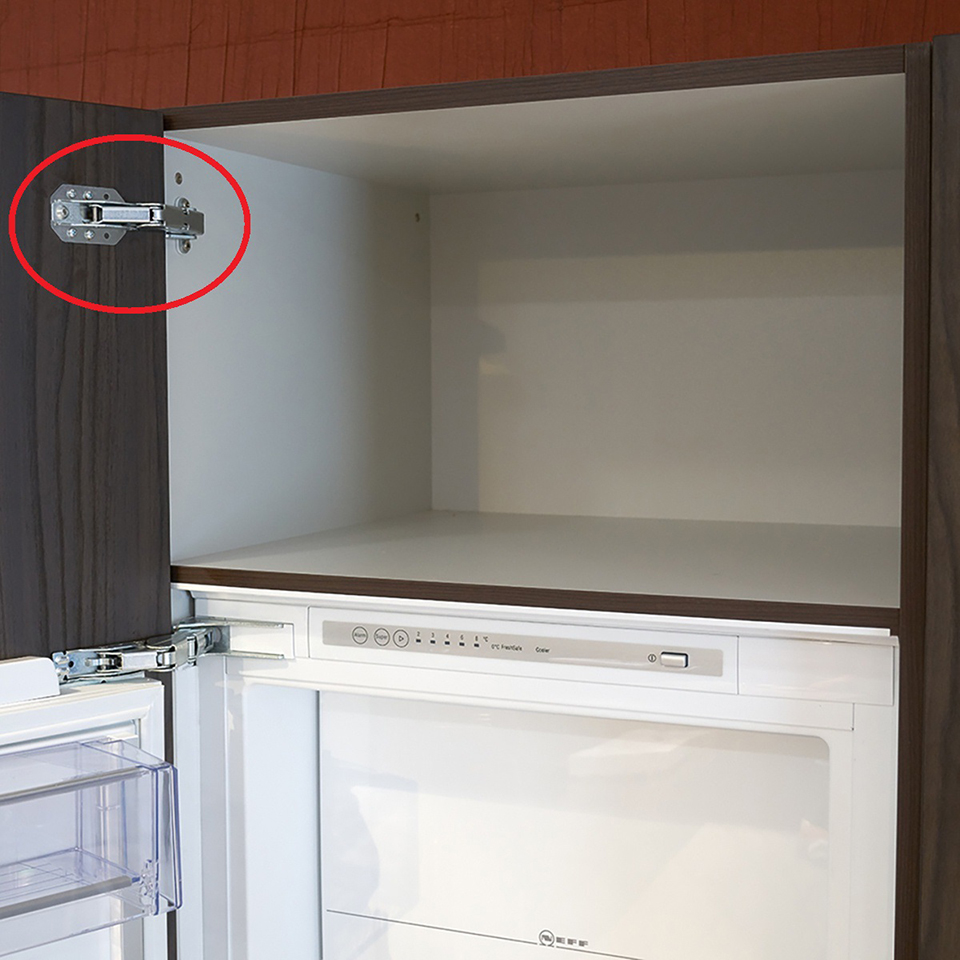

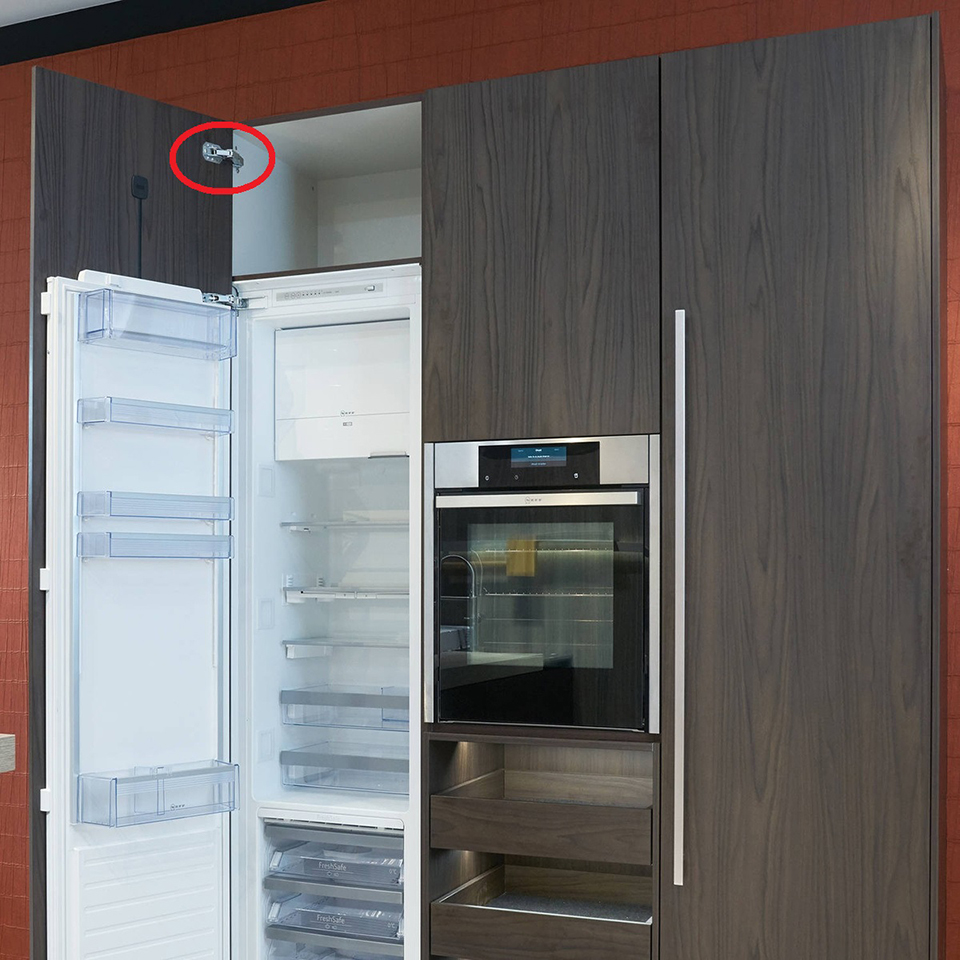

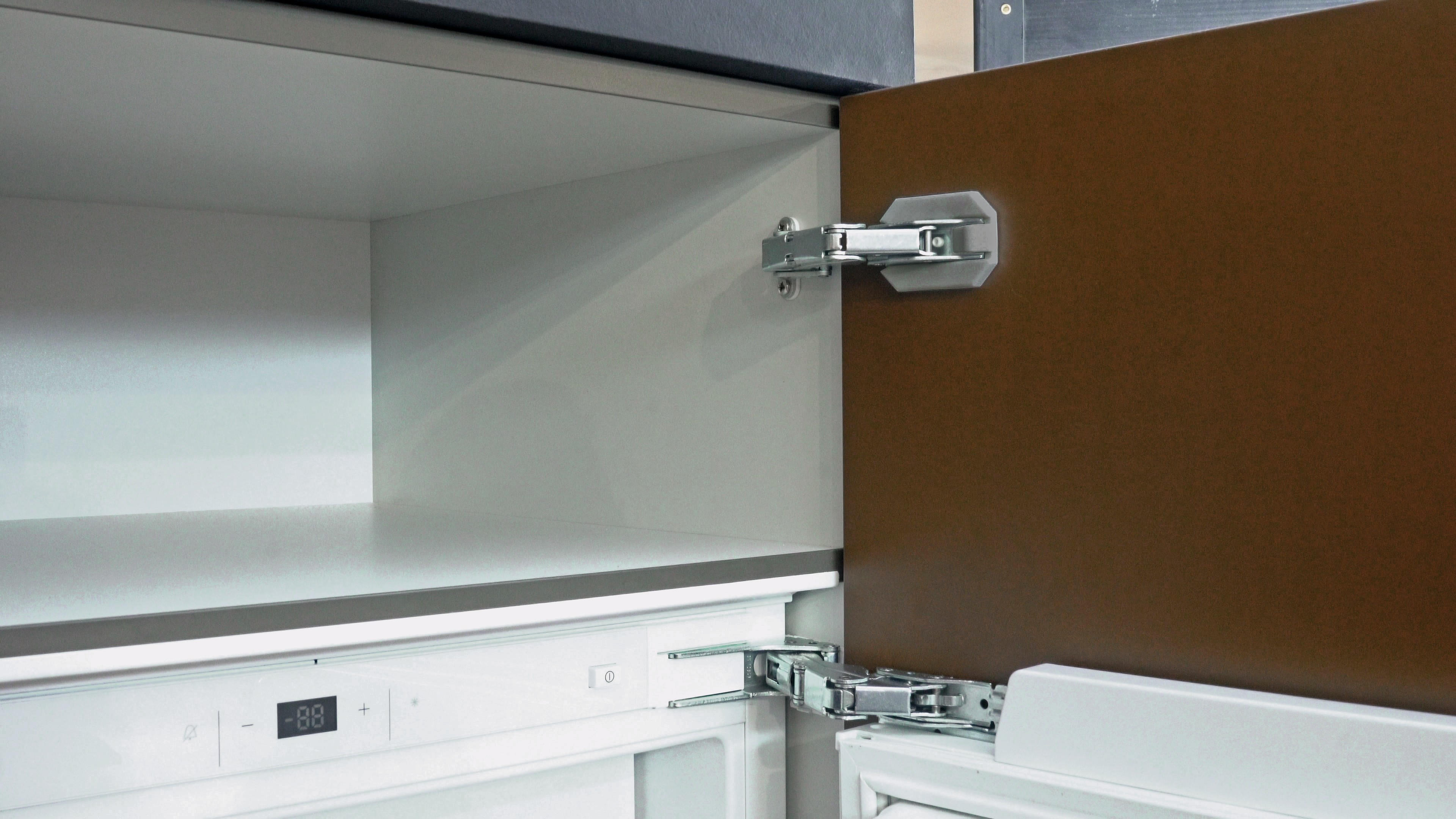

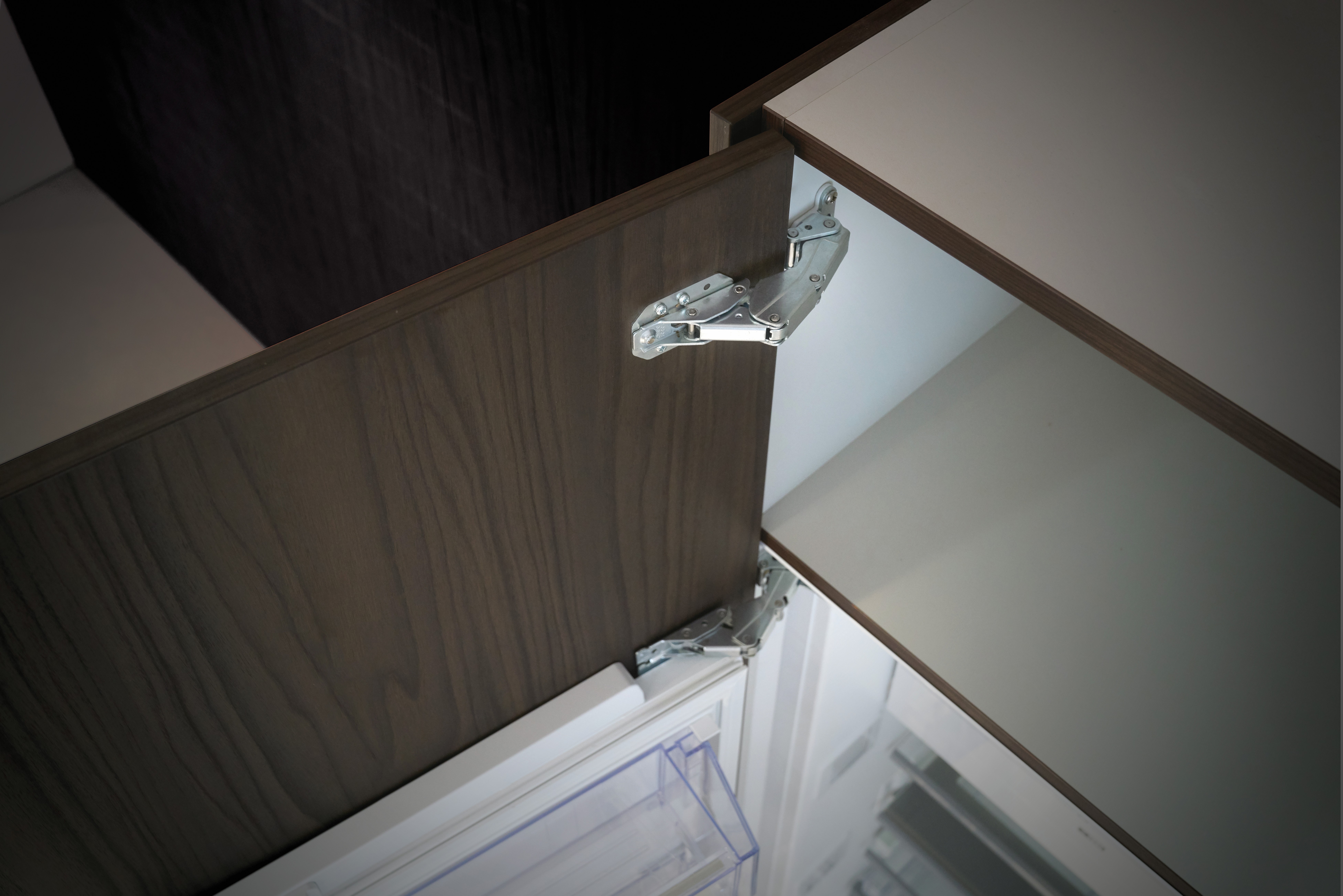

Additional hinge to be screwed on, for the overhanging part of the door above the built-in refrigerator. Quality in accordance with EN 15570, level 3. For bodies with a side thickness of 19 or 16 mm. Built-in depth 41.5 mm. Material: steel, nickel-plated. The set includes: Hinge, template, distance piece for the side of the corpus st. 16 mm, spacers, white cover, fixing screws, assembly instructions.
ET 582 hinges (104454) for built-in refrigerators with pivot hinges and a guiding slider cannot be combined with additional hinges for built-in refrigerators with OEM Hettich hinges: guiding Kamat hinge (387533) / load-bearing Evisys hinge (538127/538128).
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 115 |
| Mounting into material | Screw |
| Mounting on washer | To jam |
