HETTICH 9303928 Cadro glass door hinge with stop, set, matt black

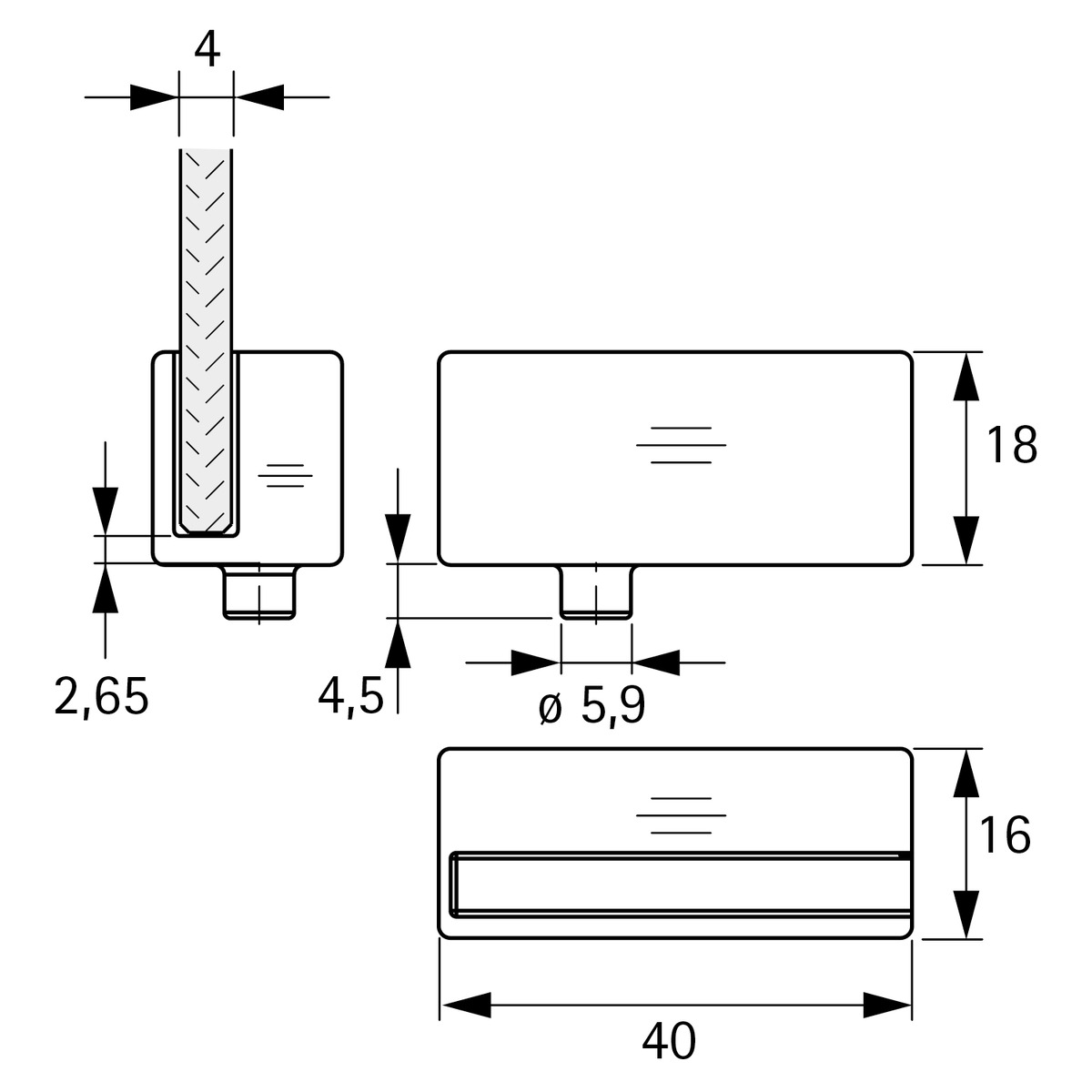

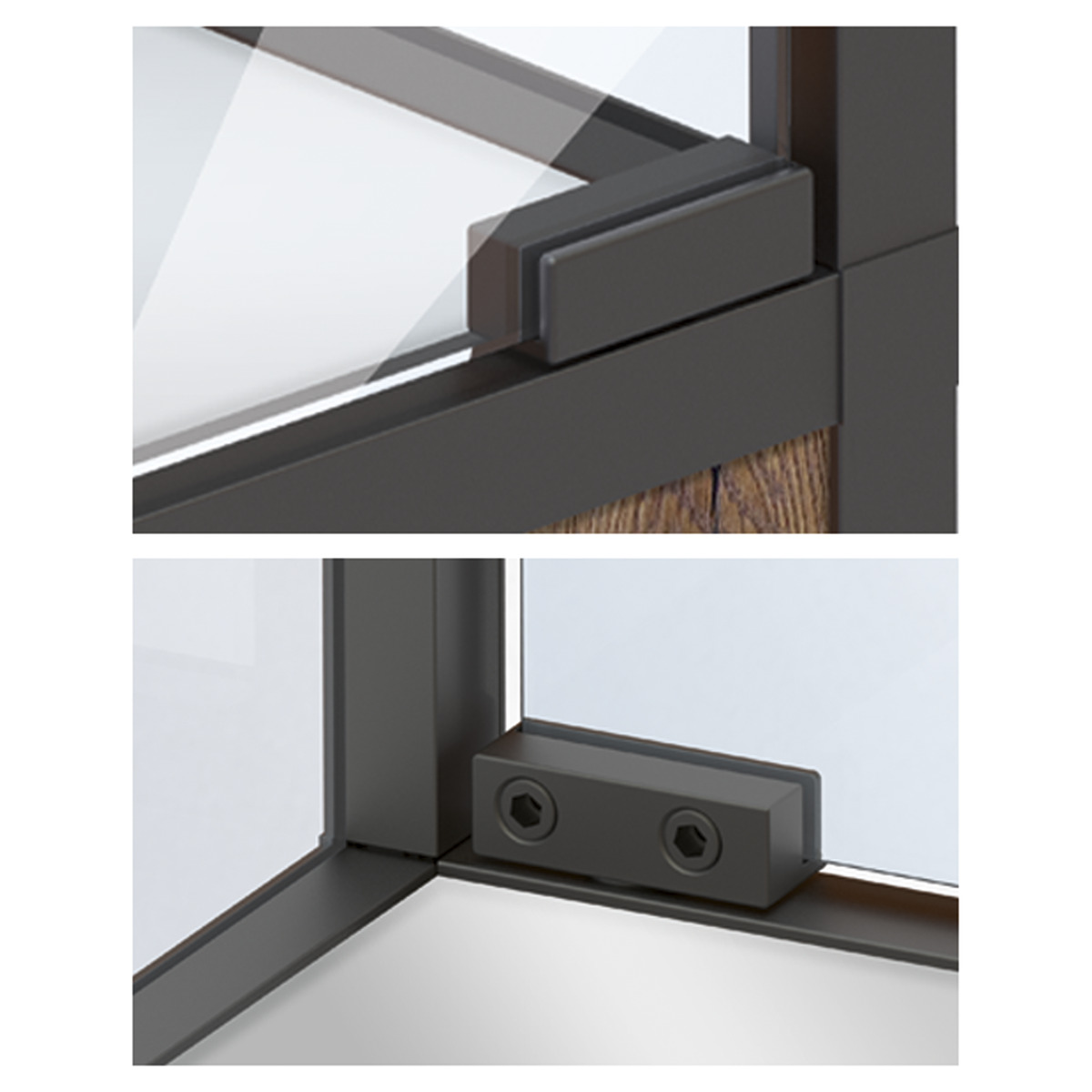

The Cadro inset glass door hinge in matt black is made of zinc die-cast (Zamak). It is designed for 4 mm toughened safety glass (ESG) doors. The maximum recommended door dimensions (width × height) are 300 × 1200 mm (maximum height) up to 600 × 800 mm (maximum width). The hinges are universal for left- and right-hand applications. The glass door is inserted into the top and bottom hinges as far as it will go and then secured with the pre-installed grub screws. When the supplied ball catches are used, the door remains securely closed for door sizes up to 500 × 900 mm. A matching Cadro glass door stop, Art. No. 9303934, is also available and must be ordered separately.
Set includes:
1 set of top and bottom hinges with pre-installed grub screws (Zamak + steel)
2 bearing sleeves (plastic)
2 ball catches (plastic)
