HETTICH 9303932 Cadro glass door lock, matt black

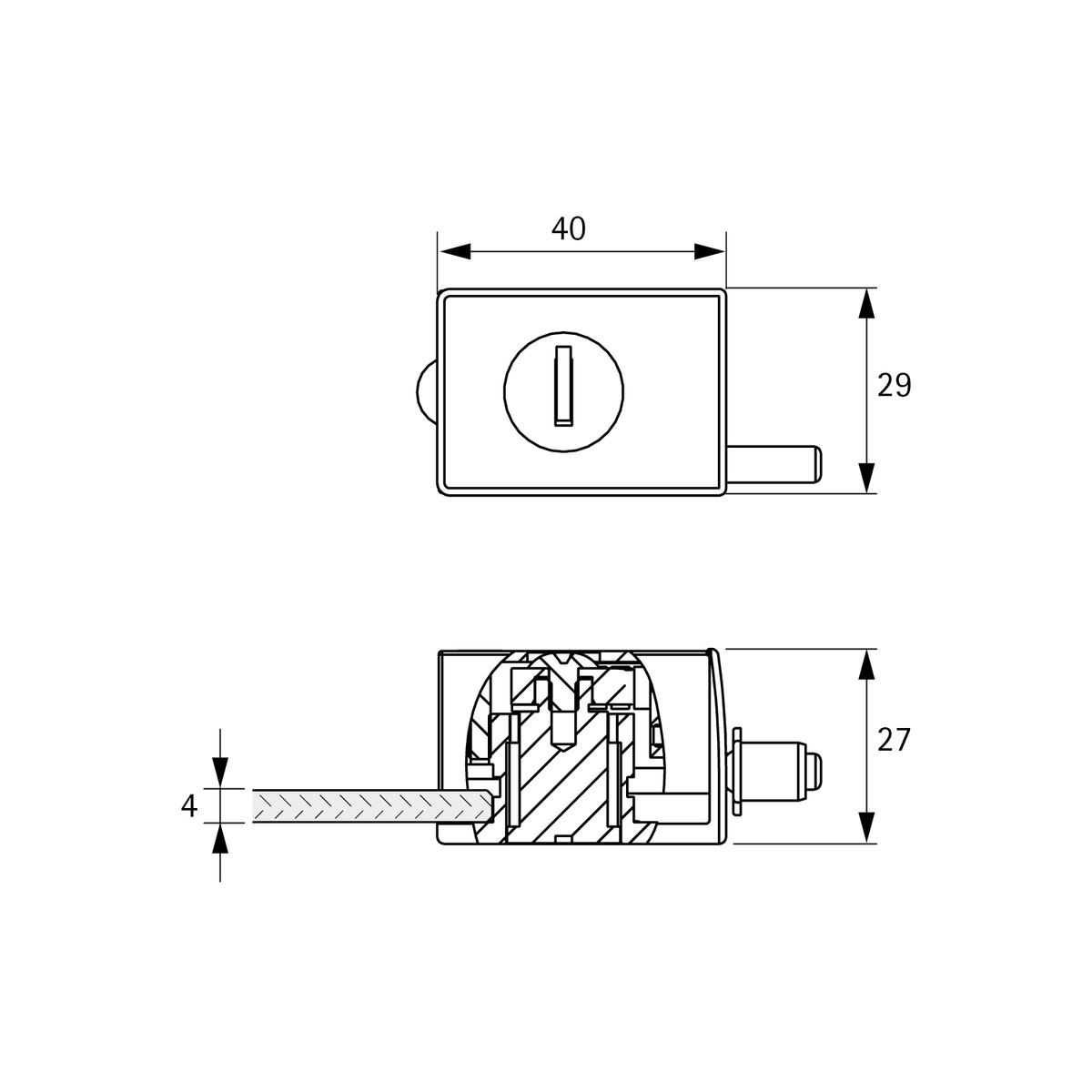

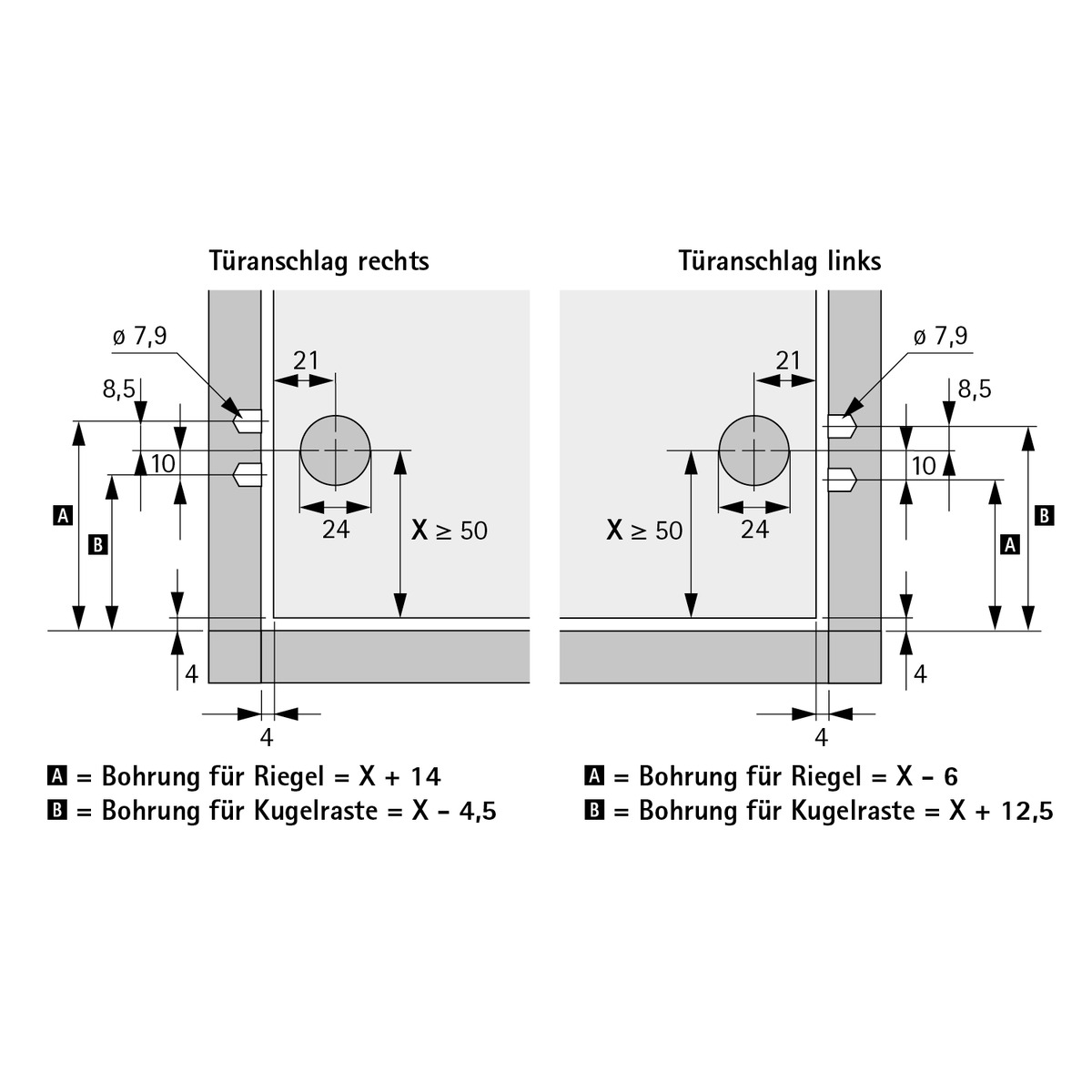

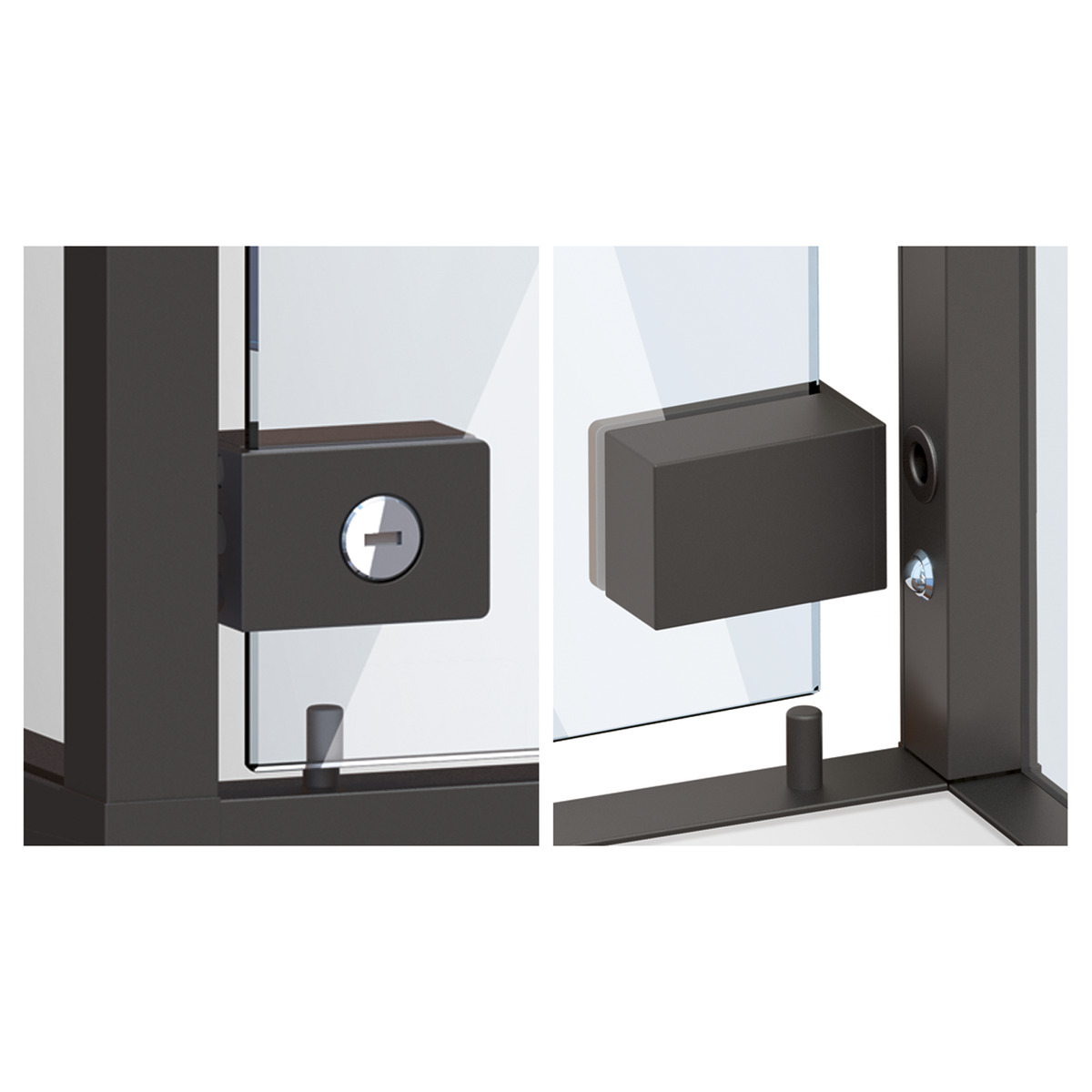

Glass door lock for Cadro system, die-cast zinc (Zamac), matt black color. For 4mm glass doors (toughened safety glass). Max. recommended door size (WxH) 300x1200mm (for max. height) to 600x800mm (msx. width). Universal use on left/right. The locking bolt is taken up by a sleeve fitted in the profile. The holes that need to be drilled in the glass door and in the adjacent profiles must be drilled before the frame is mounted. Optional use of a ball catch holds a door up to a max. size of W500xH900mm in the closed position. In addition, we recommend using glass door stop, Art. No. 9303934 (to be ordered separately).

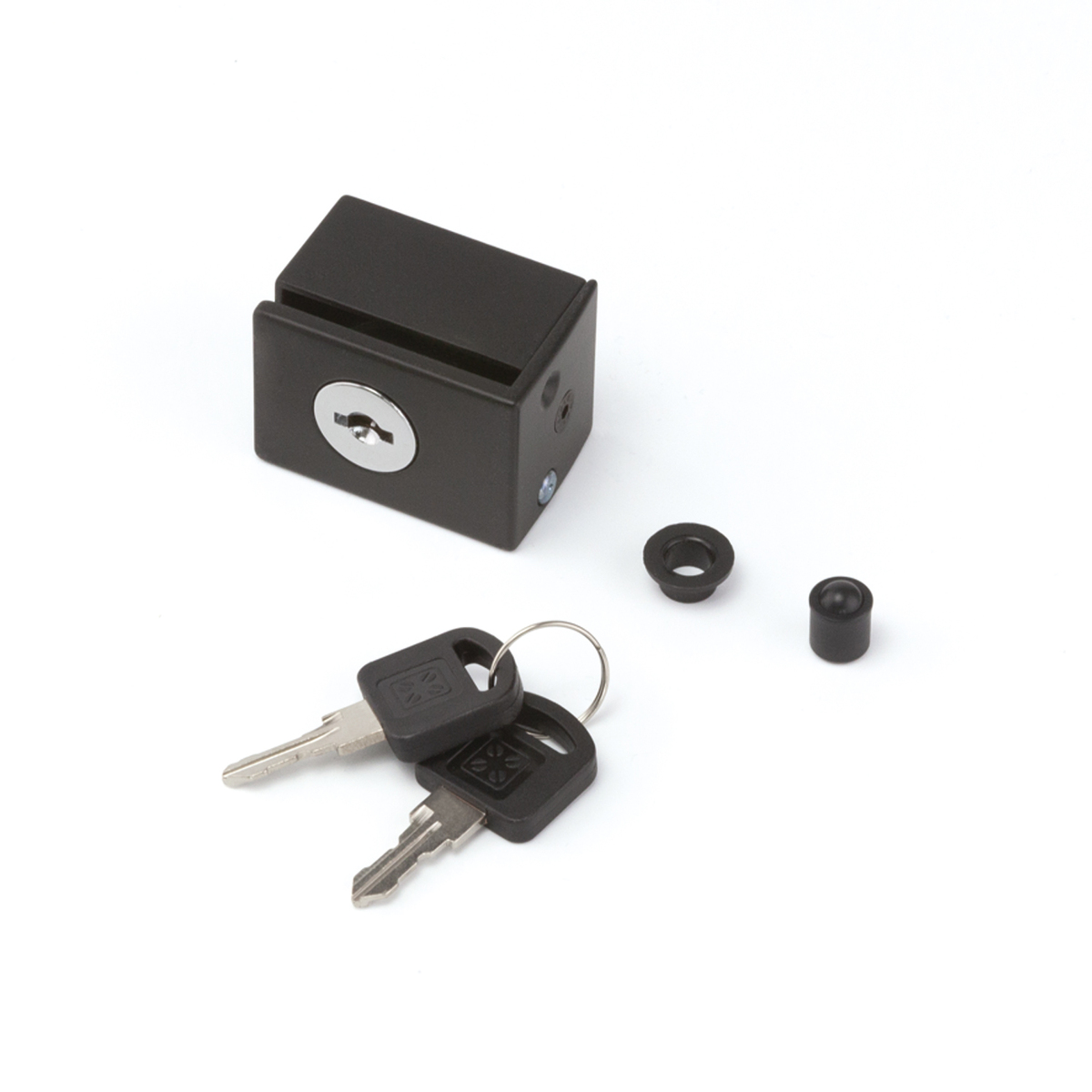

Set comprises:
1 pc glass door lock (die-cast zinc/steel)
2 pcs keys (steel/plastic)
1 pc bearing sleeve (plastic)
1 pc ball bearing stay closed feature (plastic)
