KES FREEflap forte F anthracite
-
> S In stock
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 20 set

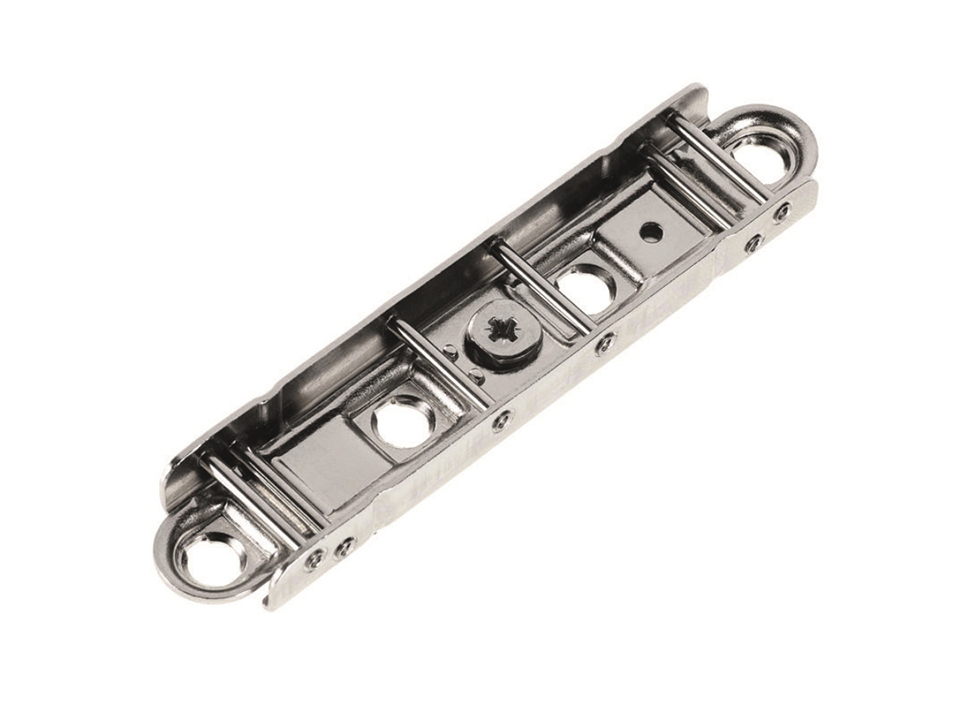

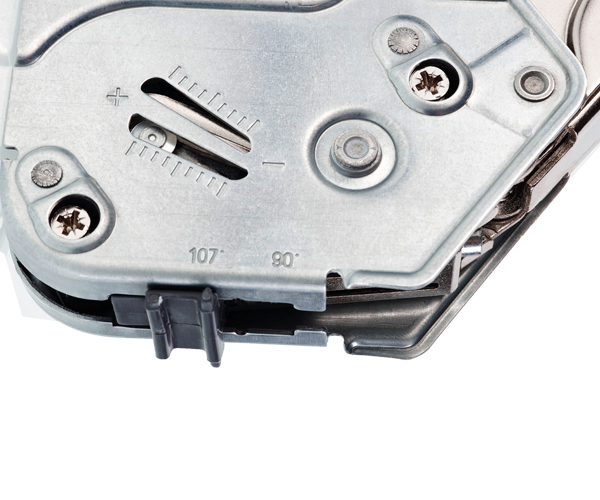

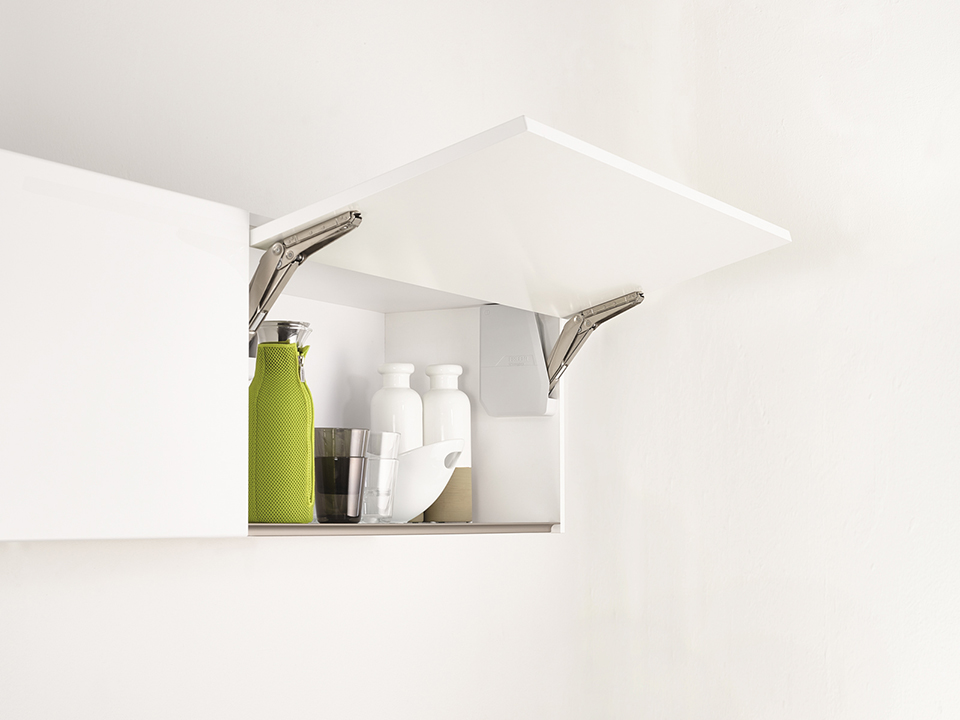

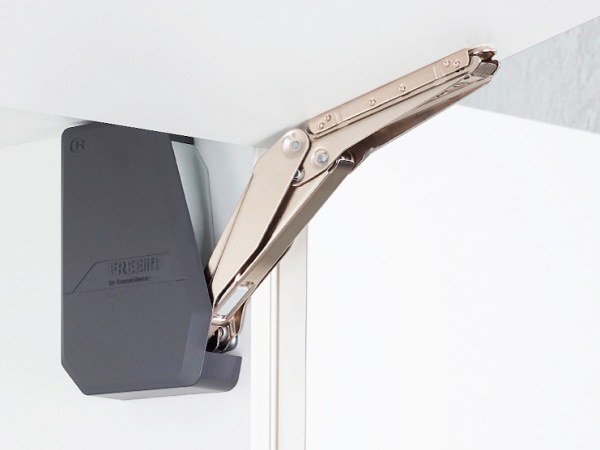

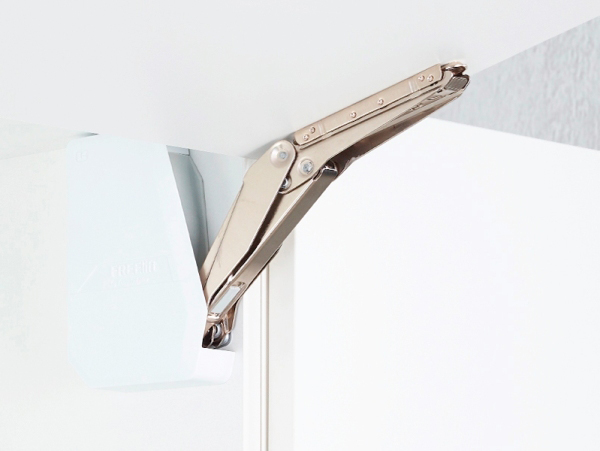

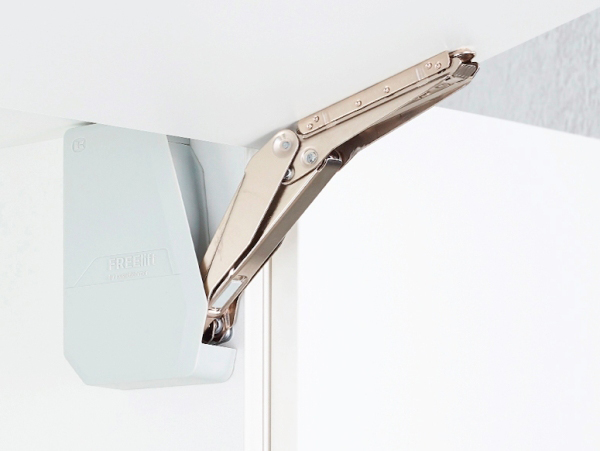

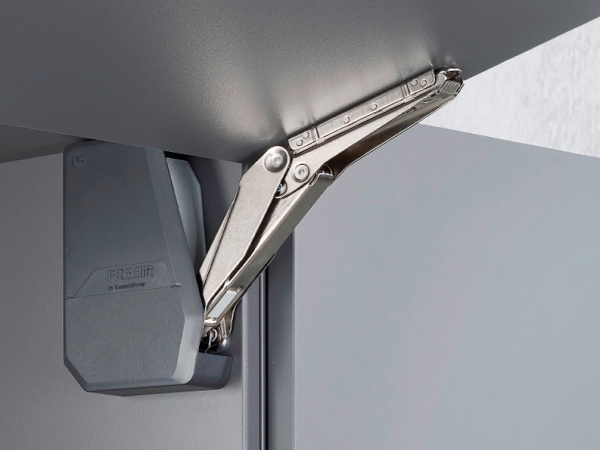

Lift fitting with velvet movement and easy installation. Opening angle 107 °. The set includes a pair of hinges, anthracite covers, front fittings. Depending on the weight and height of the front, you can determine the appropriate tilting force.

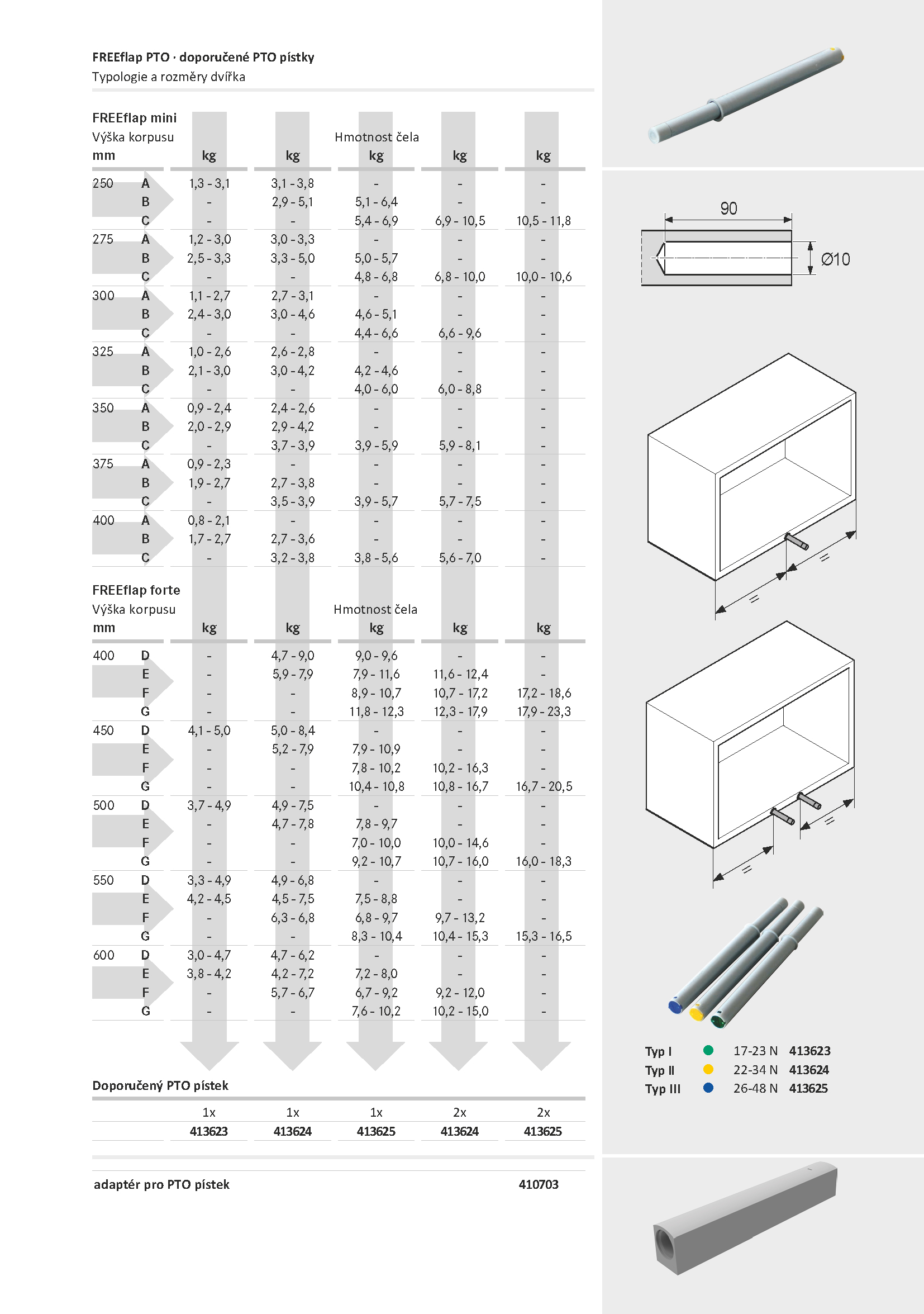

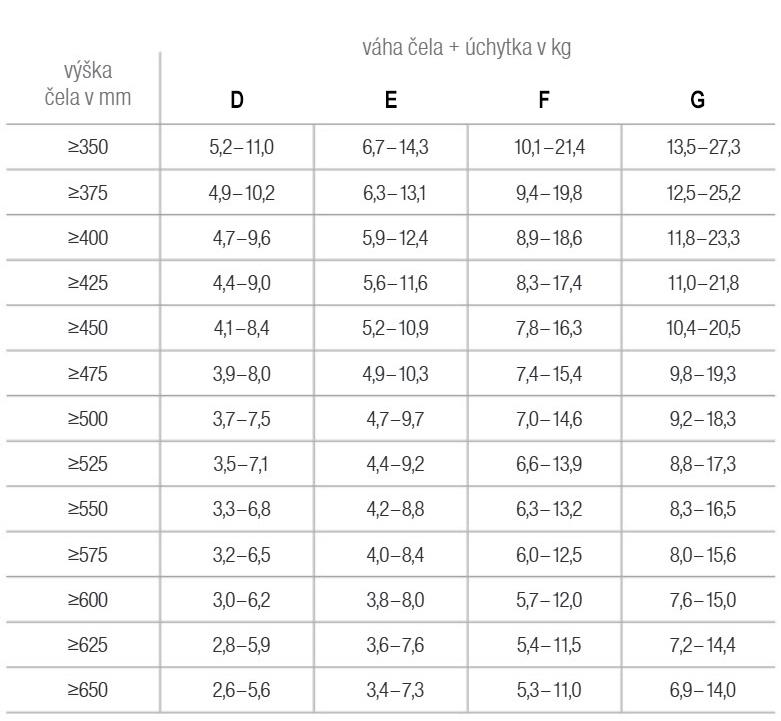

For forehead height 350mm and weight 10.1 - 21.4kg. For forehead height 375mm and weight 9.4 - 19.8kg. For forehead height 400mm and weight 8.9 - 18.6kg. For forehead height 425mm and weight 8.3 - 17.4kg. For forehead height 450mm and weight 7.8 - 16.3kg. For forehead height 475mm and weight 7.4 - 15.4kg. For forehead height 500mm and weight 7.0 - 14.6kg. For forehead height 525mm and weight 6.6 - 13.9kg. For forehead height 550mm and weight 6.3 - 13.2kg. For forehead height 575mm and weight 6.0 - 12.5kg. For forehead height 600mm and weight 5.7 - 12.0kg. For forehead height 625mm and weight 5.4 - 11.5kg. For forehead height 650mm and weight 5.3 - 11.0kg.
FREEflap videomanual
Parameters
Parameter | Value |
---|---|
Colour | Anthracite |
Design | Damped |
Height of body (mm) | 350 - 650 |
Type of front side | Wood, wide alu frame |
