KES FREEflap forte G anthracite
-
> S In stockOnly in central warehouse
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 20 set

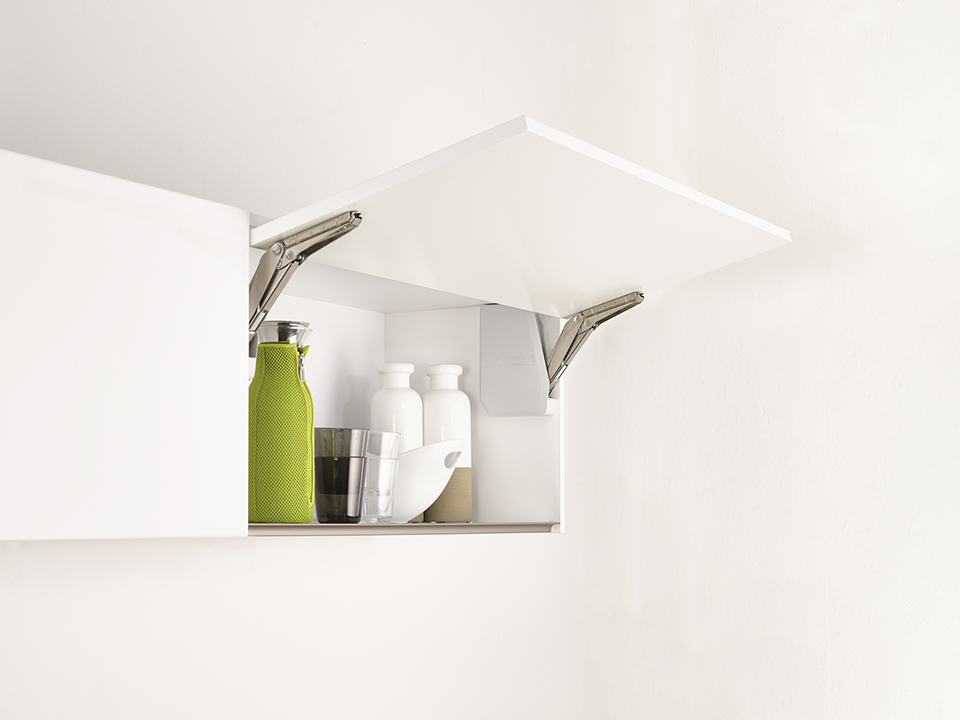

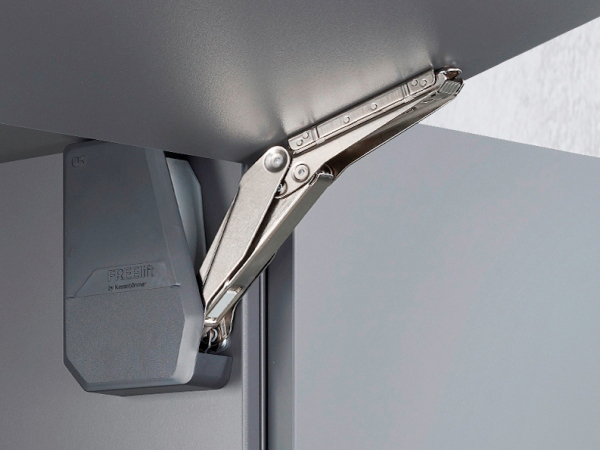

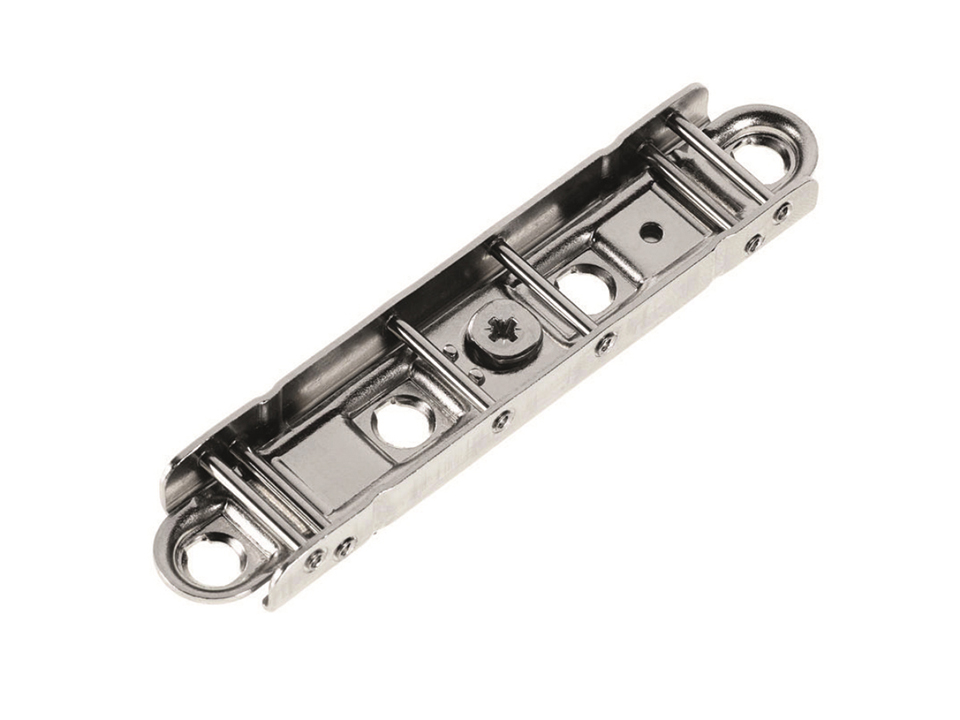

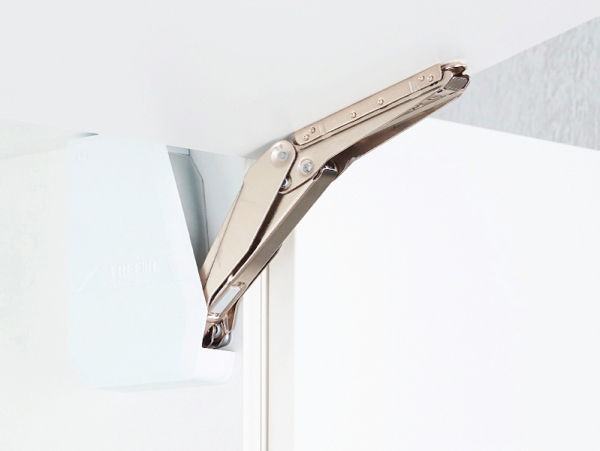

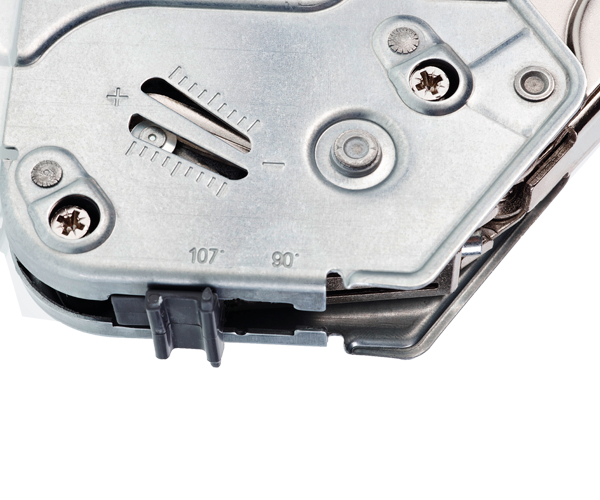

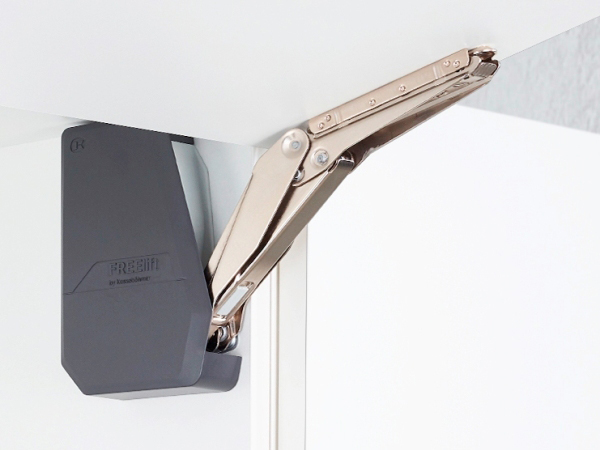

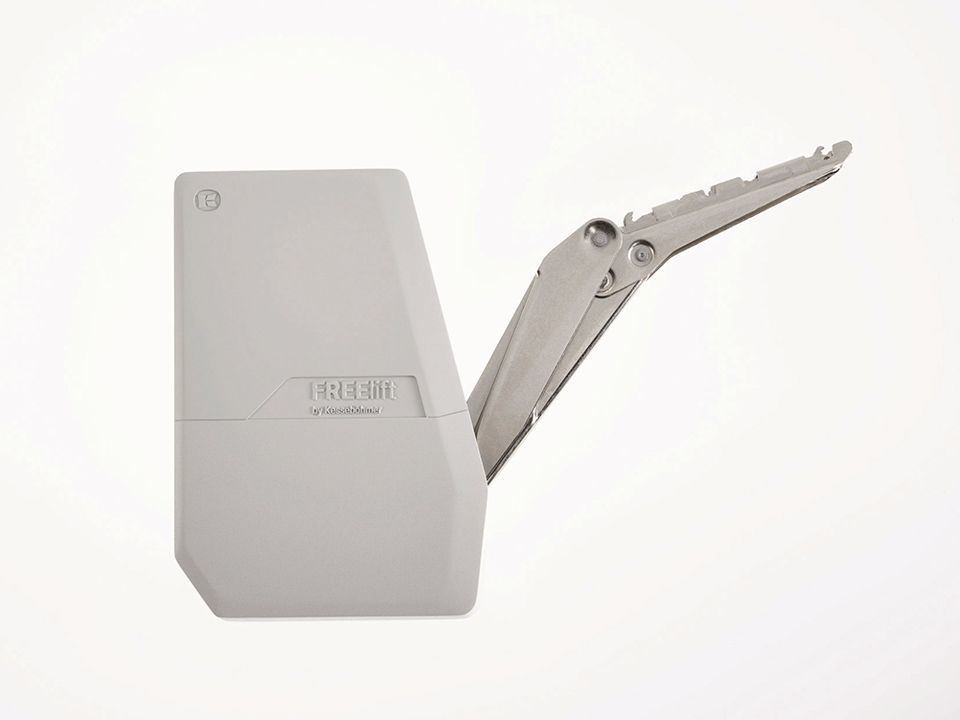

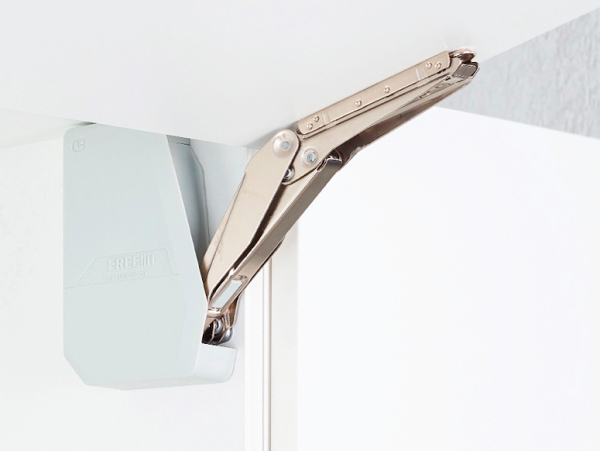

Lift fitting with velvet movement and easy installation. Opening angle 107 °. The set includes a pair of hinges, anthracite covers, front fittings. Depending on the weight and height of the front, you can determine the appropriate tilting force.

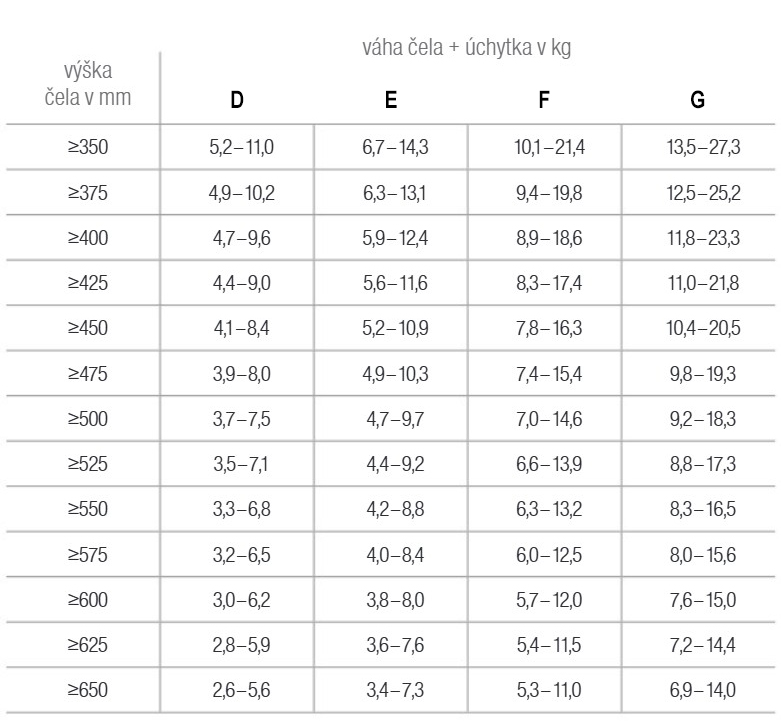

For forehead height 350mm and weight 13.5 - 27.3kg. For forehead height 375mm and weight 12.5 - 25.2kg. For forehead height 400mm and weight 11.8 - 23.3kg. For forehead height 425mm and weight 11.0 - 21.8kg. For forehead height 450mm and weight 10.4 - 20.5kg. For forehead height 475mm and weight 9.8 - 19.3kg. For forehead height 500mm and weight 9.2 - 18.3kg. For forehead height 525mm and weight 8.8 - 17.3kg. For forehead height 550mm and weight 8.3 - 16.5kg. For forehead height 575mm and weight 8.0 - 15.6kg. For forehead height 600mm and weight 7.6 - 15.0kg. For forehead height 625mm and weight 7.2 - 14.4kg. For forehead height 650mm and weight 6.9 - 14.0kg.
FREEflap videomanual
Parameters
| Parameter | Value |
|---|---|
| Colour | Anthracite |
| Design | Damped |
| Height of body (mm) | 350 - 650 |
| Type of front side | Wood, wide alu frame |
